The Rain Gauge
When you hear on the weather report that “12 mm of rain fell in the past hour,” that precise measurement didn’t come from guessing, it came from a smart, sensitive device that doesn’t miss a single drop. This is
the rain gauge — an essential tool that records every bit of rainfall with exceptional accuracy.
What Is a Rain Gauge?
- It’s a device used in weather stations to measure how much rain has fallen over a specific period.
- Rainfall is measured in millimeters (mm), where 1 mm equals 1 liter of water per square meter.
- There are several types of rain gauges, but the most common include: Tipping Bucket Gauge
Weighing Rain Gauge
Optical Rain Gauge

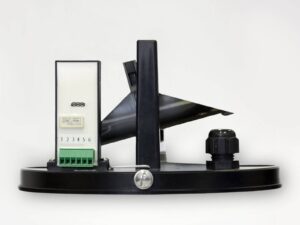

How Does the Tipping Bucket Rain Gauge Work?
- It uses a funnel to collect rain and direct it into a pair of tiny balanced buckets.
- Once one of the buckets fills with a set amount of water (e.g., 0.2 mm), it tips over, emptying the water and sending a digital signal — this counts as one unit of rainfall.
- The opposite bucket then moves into position to catch the next drops, and the cycle continues.
High Precision — Even in Light Rain
- Each tip of the bucket represents a very precise amount of rain.
- It can detect even light drizzles that barely dampen the ground.
- The process is fully automatic, with a soft clicking sound that you’d only hear if you were standing close.
Where Is the Rain Gauge Installed?
- It’s mounted at a low height — usually about 1 meter above the ground.
- Placement is important: it must be in an open area, far from trees or buildings that could block rainfall.
- The base must be perfectly level to ensure all rain is funneled accurately into the gauge.
How Is the Data Collected and Sent?
- Each tip of the bucket is converted into a digital pulse by an internal sensor.
- This data is transmitted to:
- National meteorological centers
- Flood warning and forecasting systems
- Smart irrigation systems in agriculture
- Data is logged in real-time and can be viewed on screens or online platforms.
Maintenance: Essential for Accuracy
- The funnel must be cleaned regularly to remove leaves, dust, or debris.
- Drainage paths should be checked to prevent clogs.
- The gauge must remain level — even a small tilt can affect accuracy.
- In cold climates, it needs to be protected from freezing during winter.
In Summary
The rain gauge is like the Earth’s way of listening to the sky.
It tells us exactly how much rain has fallen — helping track climate changes, support farming decisions, and inform weather forecasts.
With proper maintenance, every drop is counted — nothing is lost, not in agriculture, not in science, not in memory.
